***Available from Urban Wheelz for FNQ customers only. Please contact us for instore pre-delivery pickup or shipping arrangements.

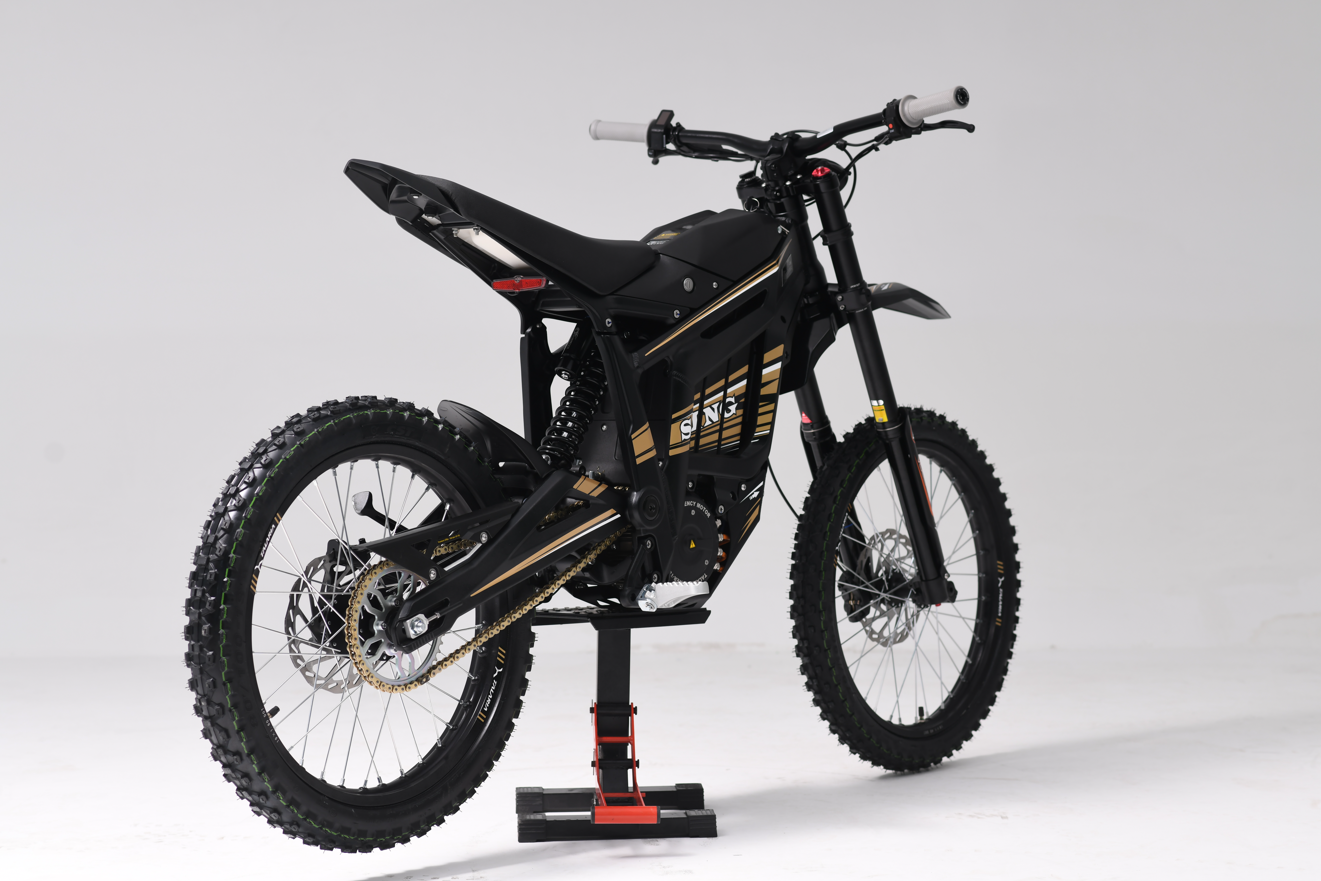

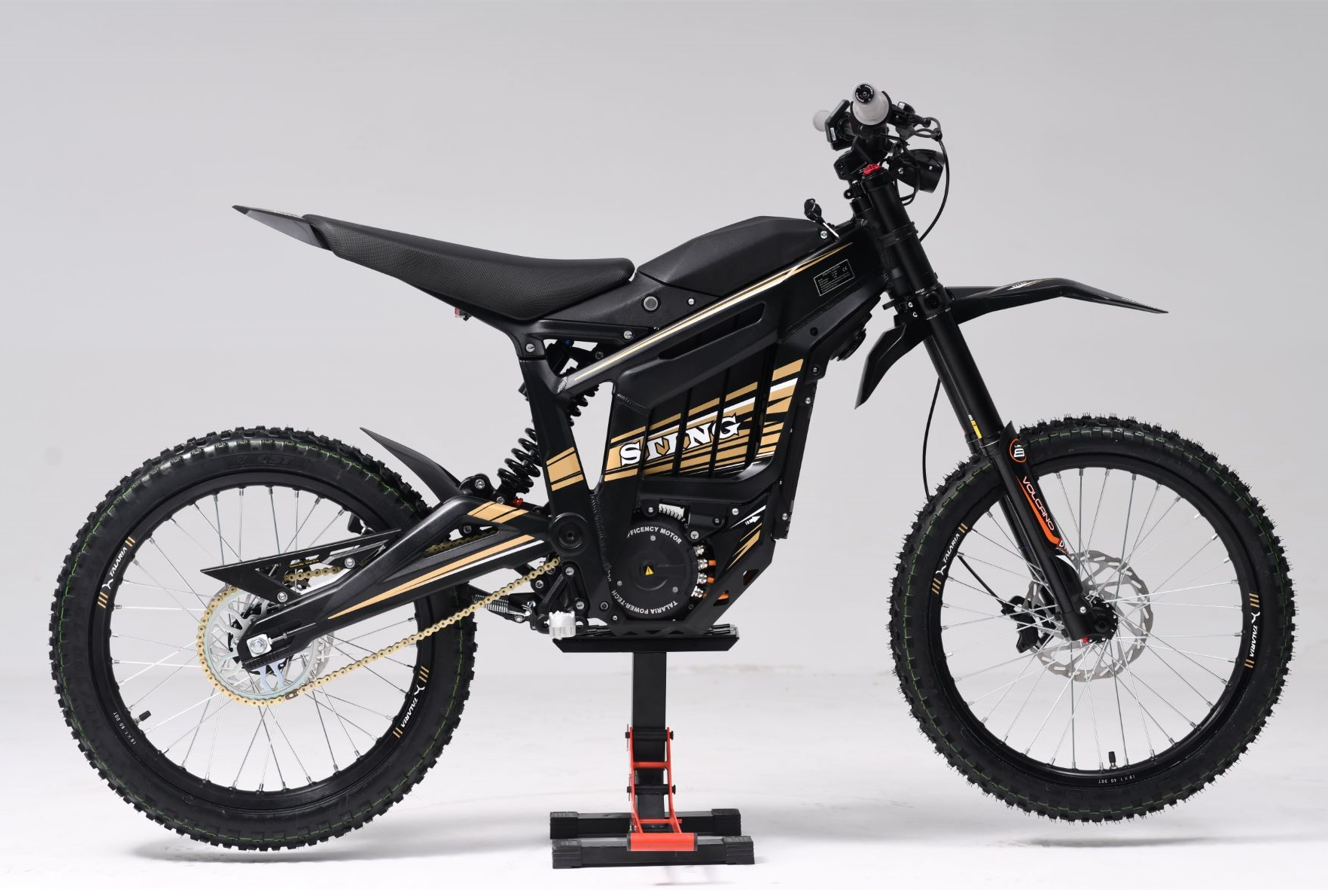

The Talaria STING electric dirt bike was born to bring cutting edge performance to all riders.
It features a CAD designed light weight frame design, a powerful electric motor delivering instant torque, transferred through an intelligent gear drive whilst operating extremely quietly.
Its compact well balanced structure is very easy to manoeuvre, and requires minimal maintenance.
All these features make STING an ideal off-road bike for more people than ever to enjoy the passion and thrill of off-road riding adventures.

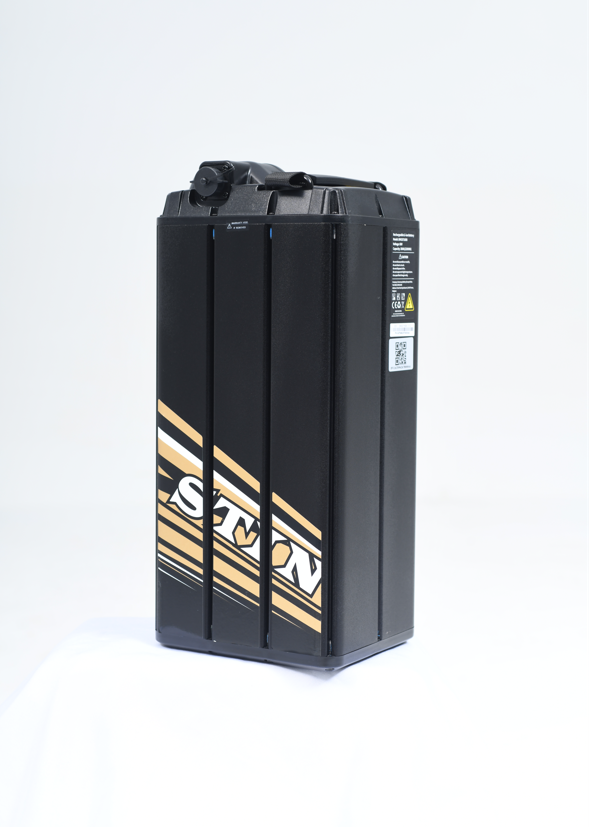

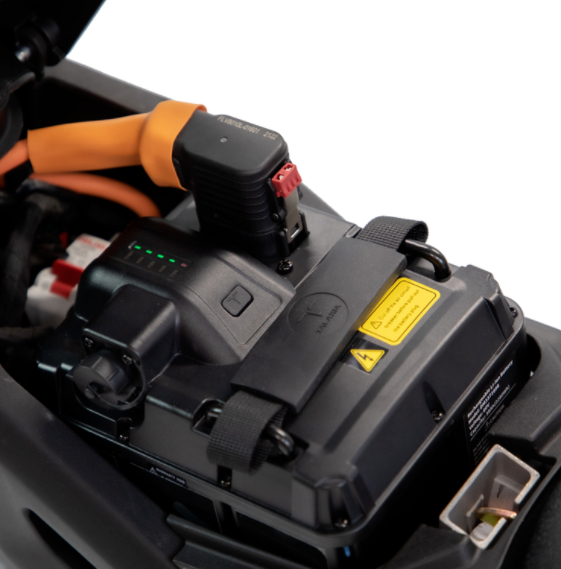

Sting is powered by an impressive 60V 38Ah lithium-ion power pack, which is 2280 watt-hours, and easily swappable. The power packs can be exchanged with another fully charger power pack in seconds for limitless range. With electric automobile grade LG 21700 lithium-ion battery cells, state of the art programmed BMS, and optimised internal structure, this battery pack is enabled to ensure the bike brings you safe, high performance off road riding.

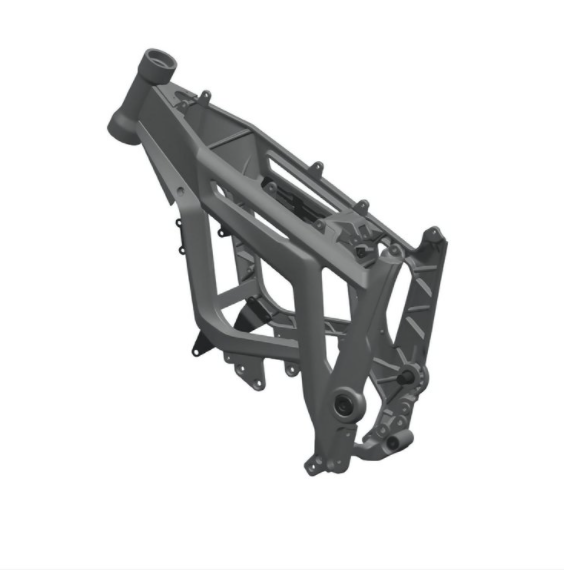

Cutting-edge engineered frame is pure purpose built, light weight and compact. using 6061 aluminium alloy, and superior forging process by 6000 tons of pressure, the frame is qualified to assure you a safe, fun and fearless riding experience through even the toughest terrains.

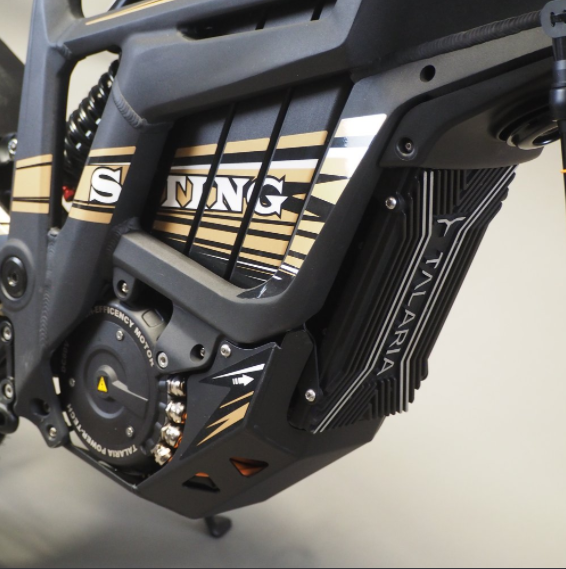

With the high-quality appropriative hardware, superb layout, and ingenious programming, the controller is enabled to have an extraordinary ability for transient current impact resistance, ultra strong anti-interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway and smart energy regeneration. This guarantees to bring the rider a powerful, exciting and safe riding experience with a respectable range.

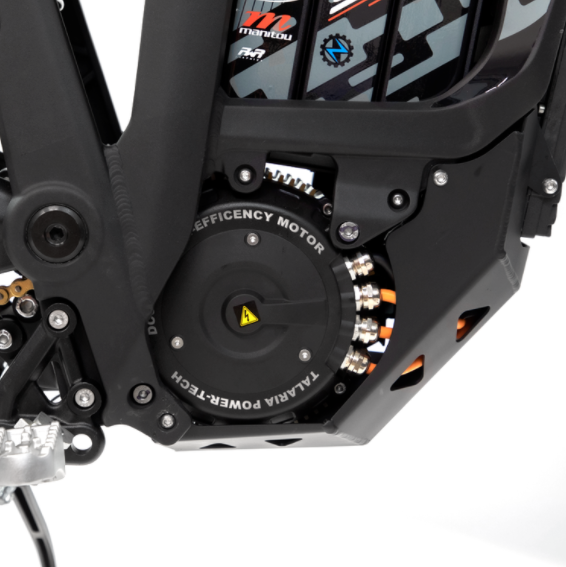

The customised combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless permanent magnet synchronous mid-drive motor, with top-class magnet material and advanced processing is available to output 34N.m peak torque, as well as to have 248N.m peak torque to the rear wheel. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. Its time to say goodbye to that broken belt anxiety.

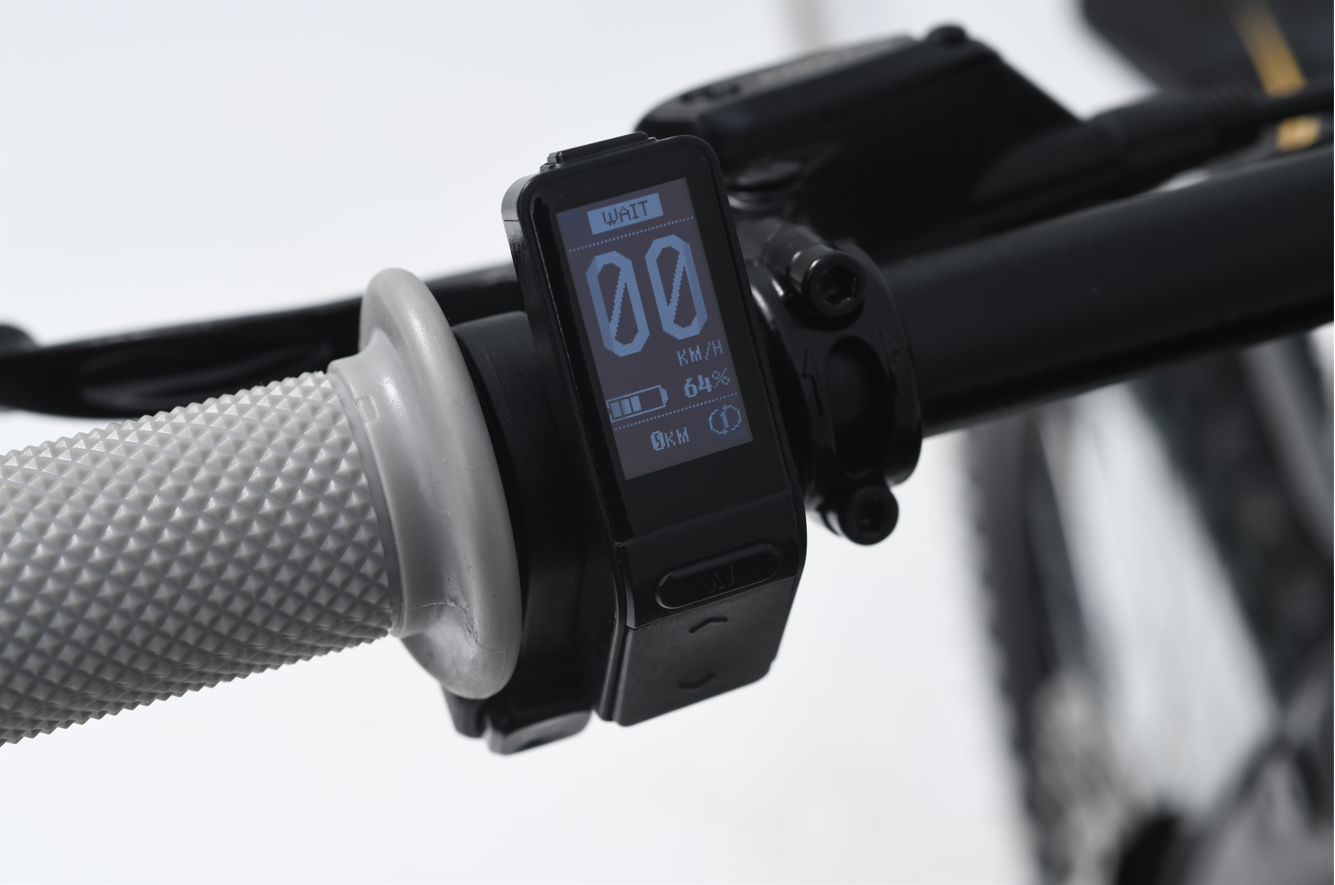

The dash features a high contrast OLED display, this will offer riders a clear data display with low power consumption. With CAN communication, the dash is available to have data transfer with the battery packs BMS and the motor controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable to allow different settings for different wheel size, sprocket size, motor regen levels, and change between KM/H and MPH to enhance the compatibility of the bike.
The Sting uses a unique gear twist structure design, the core parts of the throttle can be well protected, even if the throttle tube suffers some impact damage, the throttle is still workable. And with the automobile level encoder, the throttle can enable the rider to control the acceleration with ease. Its a specialised product and fantastic for an electric off-road bike.
|MOTOR TYPE||PMSM (PERMANENT MAGNET SYNCHRONOUS MOTOR)|
|MOUNTING POSITION||MIDDLE OF THE FRAME|
|MOTOR EXTERNAL DIAMETER||Φ180mm|
|MOTOR AXIAL LENGTH||120mm|
|DIMENSION||248mm x 128mm x 50mm|
|HIGHEST WORK TEMPERATURE||100 °|
|MOTOR POWER SYSTEM (MOTOR + CONTROLLER)|
|NORMINAL VOLTAGE||60V (DC)|
|TORQUE ON REAR WHEEL||284N.m (44T Sprocket) / 309N.m (48T Sprocket)|
|GEAR RATIO||8.35 (44T Sprocket) / 9.18 (48T Sprocket)|
|1st TRANSMISSION MODE||GEARBOX|
|2 nd TRANSMISSION MODE||CHAIN|
|BATTERY PACK||60V / 38.4Ah|
|BATTERY PACK||MEAS. 170X140X380|
|BATTERY PACK||WEIGHT 12.85KG|
|BATTERY CELL||LG Brand 21700 Cell (5000mAh/cell)|
|REGEN ADJUST METHOD||4-Level Adjustment|
|PACKING TYPE||CARTON G.W. 84KG QTY./40HC|
**Available for collection instore only. Shipping rates will be provided upon enquiry.
