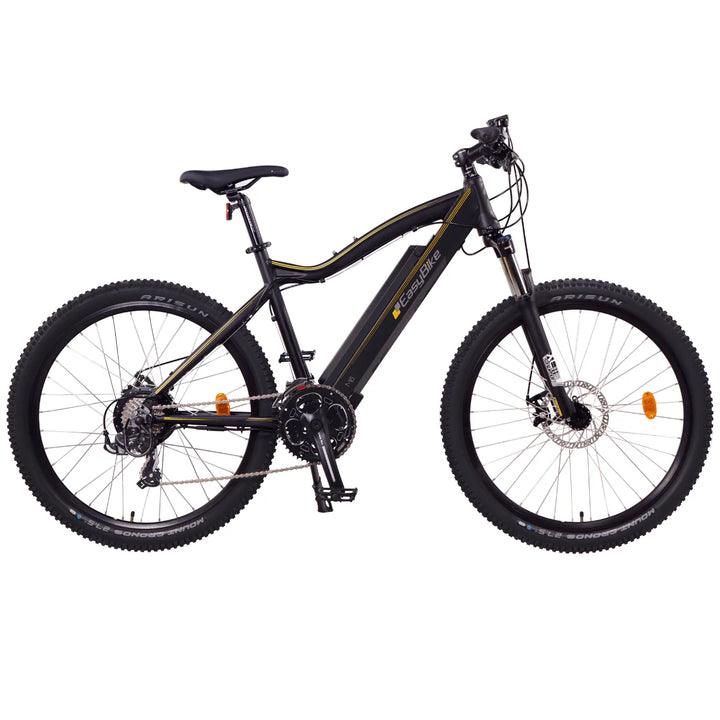

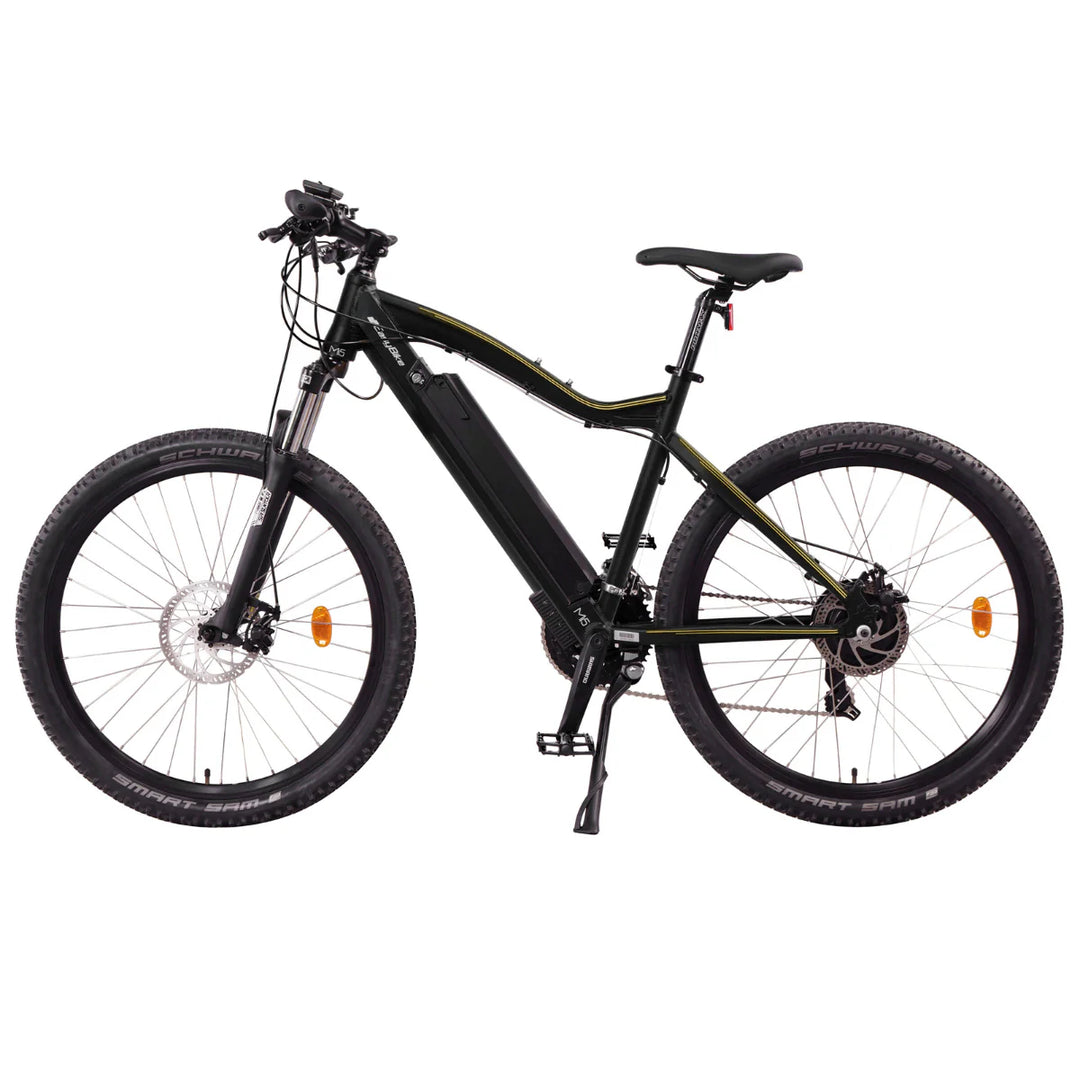

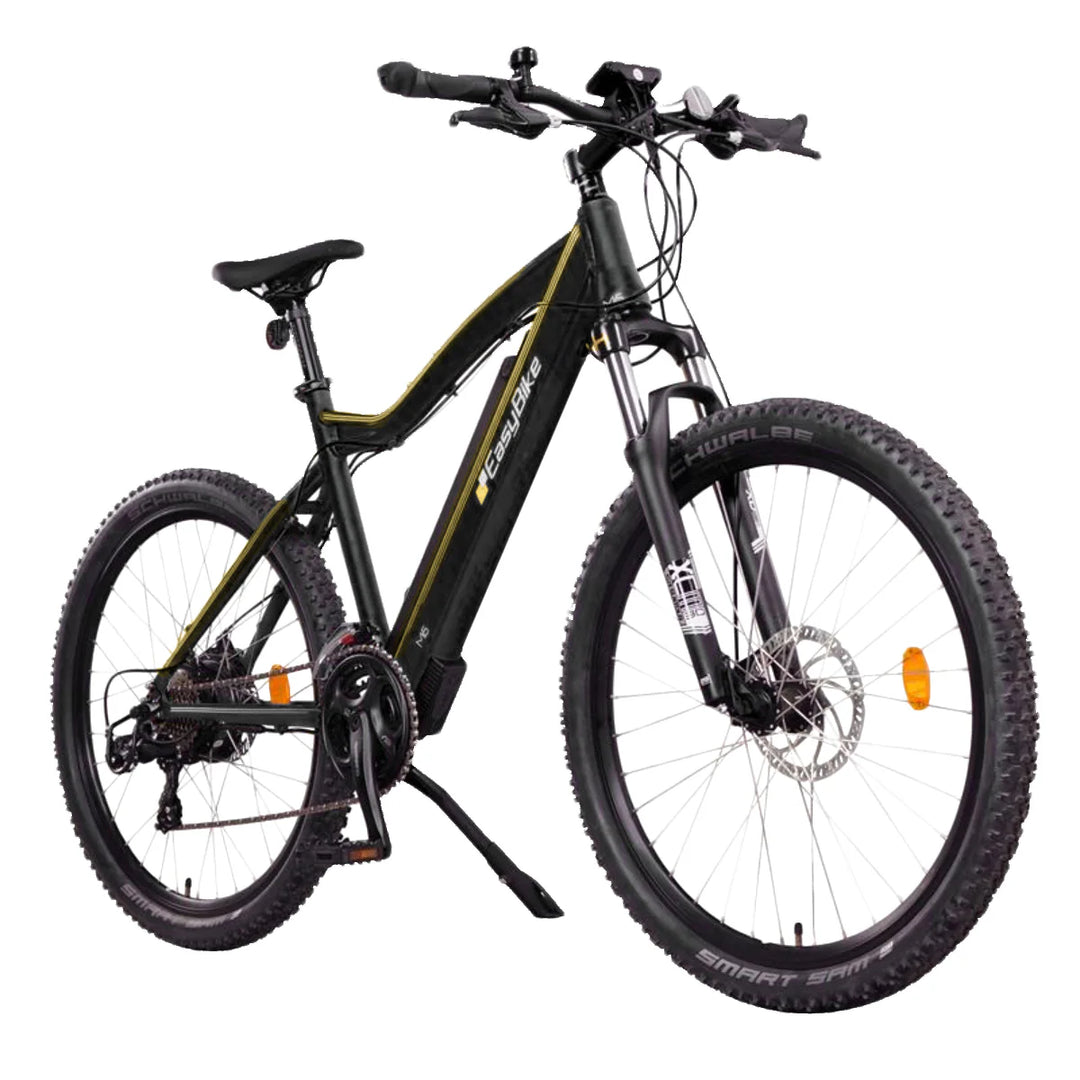

Rugged and capable, the NCM EASYBIKE Mi5 is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.
BIKE COMPONENTS
Frame: Aluminium 6061, 27.5"*480MM
Suspension Fork: Suntour, XCM -HLO-27.5, with suspension
Brake: Tektro Mechanical Disc Brakes
Freewheel: Shimano Altus 7 speed
Tire: Schwalbe/Arisun, 27.5"*2.35
Saddle: VELO, with "EASY BIKE”logo
Crank: Shimano, Altus M311
Shifter: Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed
Front Derailleur: Shimano, Altus, AFDM310L6C
Rear Derailleur: Shimano, Tourney, RDTY500D
ELECTRIC COMPONENTS
Battery: Das-Kit, I5, 36V 13Ah, 468Wh with USB Port
Motor: Das-Kit, X15, Rear drive motor, 36V 250W, 25KM/H
Controller: Das-Kit, CT-D5-44, 36V 15A
Charger: 36V 2A
Display: Das-Kit, C7BB, LCD, 6 Assistance levels
Front Light: Cateye, Front reflector
Rear Light: Cateye, Rear reflector
WEIGHT
Net Weight (with battery): 25.0kg
Battery Weight: 3.5kg
Max Load (driver+bike): 125kg
